MongoDB OpsManager 3.6.5 installation and monitoring agent configuration

-
OpsManager 3.6.5 installation

This is just a quick guide for myself, documenting step by step how to implement MongoDB OpsManagernote: mongod version: 3.6.x

Download from
https://www.mongodb.com/download-center#ops-manager


1. Create backing databases
a. OpsManager App DB
b. OpsManager Backup DB (Op DB, BlockStore DB)

Startup backing app db.


sudo -u mongod mongod --port 25001 --dbpath /data/mongod/appDB --logpath /data/mongod/appDBLog/applog1.log --replSet opApp --bind_ip localhost,10.155.228.75 --cpu --fork







sudo -u mongod mongod --port 25001 --dbpath /data/mongod/appDB --logpath /data/mongod/appDBLog/applog1.log --replSet opApp --bind_ip localhost,10.155.208.207 --cpu --fork







sudo -u mongod mongod --port 25001 --dbpath /data/mongod/appArb --logpath /data/mongod/appArbLog/appArblog1.log --replSet opApp --cpu --bind_ip localhost,10.155.208.169 --fork



on host 75



mongo --port 25001



rs.initiate()









run as MongoDB Enterprise opApp:PRIMARY>



rs.add({host:"10.155.208.207:25001"})



rs.addArb("10.155.208.169:25001")



Startup backing backup db (opDB)


sudo -u mongod mongod --port 35001 --dbpath /data/mongod/opDB --logpath /data/mongod/opDBLog/oplog1.log --replSet opStore --bind_ip localhost,10.155.228.75 --cpu --fork







sudo -u mongod mongod --port 35001 --dbpath /data/mongod/opDB --logpath /data/mongod/opDBLog/oplog1.log --replSet opStore --bind_ip localhost,10.155.208.169 --cpu --fork







sudo -u mongod mongod --port 35001 --dbpath /data/mongod/opArb --logpath /data/mongod/opArbLog/opArblog1.log --replSet opStore --cpu --bind_ip localhost,10.155.208.207 --fork



mongo --port 35001



rs.initiate()



rs.add({host:"10.155.208.169:35001"})



rs.addArb("10.155.208.207:35001")

(blockStoreDB)


sudo -u mongod mongod --port 45001 --dbpath /data/mongod/bsDB --logpath /data/mongod/bsDBLog/bslog1.log --replSet bsStore --bind_ip localhost,10.155.228.75 --cpu --fork





sudo -u mongod mongod --port 45001 --dbpath /data/mongod/bsDB --logpath /data/mongod/bsDBLog/bsLog1.log --replSet bsStore --bind_ip localhost,10.155.208.169 --cpu --fork





sudo -u mongod mongod --port 45001 --dbpath /data/mongod/bsArb --logpath /data/mongod/bsArbLog/bsArblog1.log --replSet bsStore --cpu --bind_ip localhost,10.155.208.207 --fork




mongo --port 45001




rs.initiate()




rs.add({host:"10.155.208.169:45001"})




rs.addArb("10.155.208.207:45001")



download mongodb opsmanager rpm and copy to /data/mongod folder


sudo rpm -ivh mongodb-mms-<version>.x86_64.rpm

When installed, the base directory for the Ops Manager software is /opt/mongodb/mms/. The .rpmpackage creates a new system user mongodb-mms under which the server runs.

find the version of redhat due to https://docs.opsmanager.mongodb.com/current/tutorial/install-on-prem-with-rpm-packages/#only-if-you-installed-to-rhel-7-1-or-7-2-replace-symlinks-with-scripts


[root@msdlvd-dsnavl02 mongod]# hostnamectl



   Static hostname: msdlvd-dsnavl02



         Icon name: computer-vm



           Chassis: vm



        Machine ID: 69543fffeb5045b980089d047eec1653



           Boot ID: 5e38372cf85841d58cea67372fd48ea4



    Virtualization: vmware



  Operating System: Red Hat Enterprise Linux Server 7.3 (Maipo)



       CPE OS Name: cpe:/o:redhat:enterprise_linux:7.3:GA:server



            Kernel: Linux 3.10.0-514.2.2.el7.x86_64



      Architecture: x86-64







or

[root@msdlvd-dsnavl02 mongod]# cat /etc/redhat-release

Red Hat Enterprise Linux Server release 7.3 (Maipo)



or

[root@msdlvd-dsnavl02 mongod]# cat /etc/os-release
NAME="Red Hat Enterprise Linux Server"
VERSION="7.3 (Maipo)"
ID="rhel"
ID_LIKE="fedora"
VERSION_ID="7.3"
PRETTY_NAME="Red Hat Enterprise Linux Server 7.3 (Maipo)"
ANSI_COLOR="0;31"
CPE_NAME="cpe:/o:redhat:enterprise_linux:7.3:GA:server"
HOME_URL="https://www.redhat.com/"
BUG_REPORT_URL="https://bugzilla.redhat.com/"

REDHAT_BUGZILLA_PRODUCT="Red Hat Enterprise Linux 7"
REDHAT_BUGZILLA_PRODUCT_VERSION=7.3
REDHAT_SUPPORT_PRODUCT="Red Hat Enterprise Linux"
REDHAT_SUPPORT_PRODUCT_VERSION="7.3"







or

[root@msdlvd-dsnavl02 mongod]# lsb_release -a

LSB Version:    :core-4.1-amd64:core-4.1-noarch:cxx-4.1-amd64:cxx-4.1-noarch:desktop-4.1-amd64:desktop-4.1-noarch:languages-4.1-amd64:languages-4.1-noarch:printing-4.1-amd64:printing-4.1-noarch

Distributor ID: RedHatEnterpriseServer

Description:    Red Hat Enterprise Linux Server release 7.3 (Maipo)

Release:        7.3

Codename:       Maipo


I ran the rpm installer on 10.155.228.75

vi /opt/mongodb/mms/conf/conf-mms.properties


mongo.mongoUri=mongodb://10.155.228.75:25001,10.155.208.207:25001,10.155.208.169:25001


Starting Ops Manager
sudo service mongodb-mms start

Access OpsManager UI via
http://<OpsManagerHost>:8080

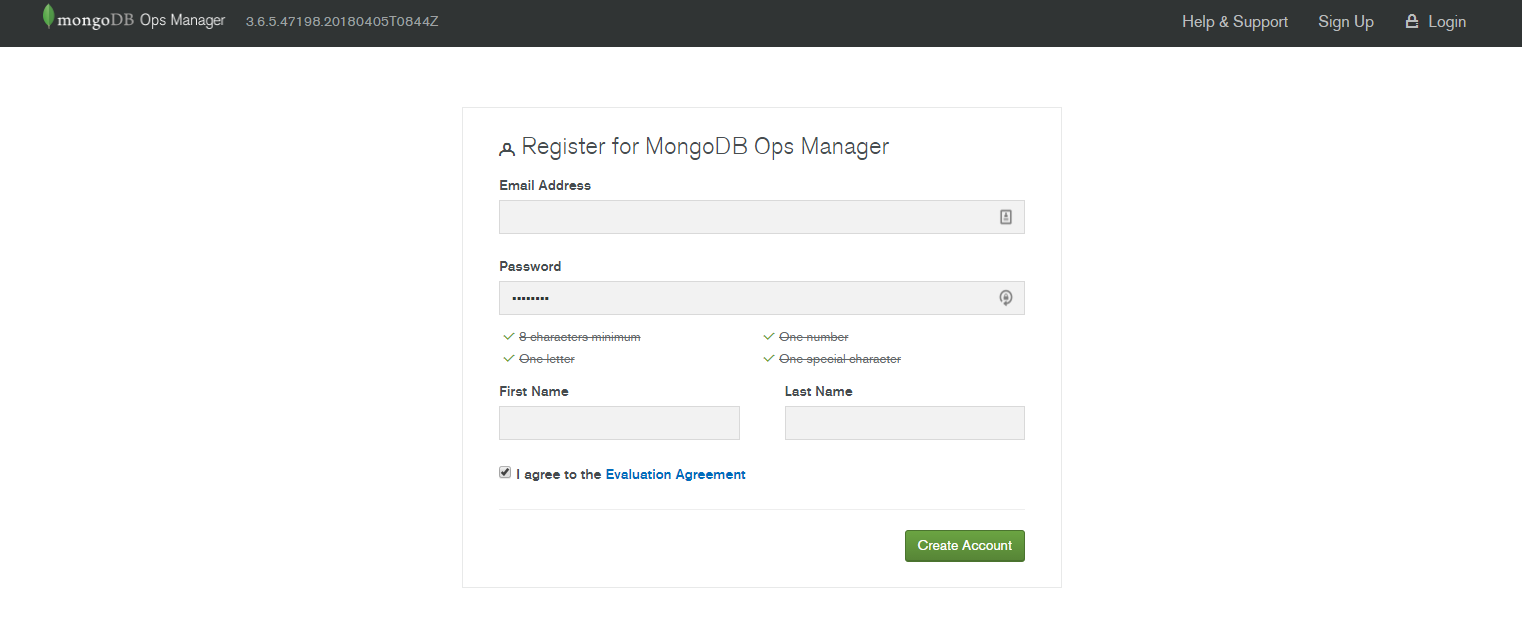

Click on register for first time access


To install monitoring agent:




Monitoring Agent Installation






curl -OL http://10.155.228.75:8080/download/agent/monitoring/mongodb-mms-monitoring-agent-6.1.3.436-1.x86_64.rhel7.rpm
sudo rpm -U mongodb-mms-monitoring-agent-6.1.3.436-1.x86_64.rhel7.rpm

[root@msdlva-dsnops01 mongod]# sed -i '/mmsGroupId=/d' /etc/mongodb-mms/monitoring-agent.config



[root@msdlva-dsnops01 mongod]# sed -i '/mmsApiKey=/d' /etc/mongodb-mms/monitoring-agent.config



[root@msdlva-dsnops01 mongod]# sed -i '/mmsBaseUrl=/d' /etc/mongodb-mms/monitoring-agent.config

[root@msdlva-dsnops01 mongod]# echo "mmsBaseUrl=http://10.155.228.75:8080" >>/etc/mongodb-mms/monitoring-agent.config



[root@msdlva-dsnops01 mongod]# echo "mmsGroupId=5ad4d9ba8f652f6599620feb" >>/etc/mongodb-mms/monitoring-agent.config



[root@msdlva-dsnops01 mongod]# echo "mmsBaseUrl=http://10.155.228.75:8080" >>/etc/mongodb-mms/monitoring-agent.config



[root@msdlva-dsnops01 mongod]# echo "mmsApiKey=5add87fsafd613f659dfasdffdfda064f5d00061ea61fdafb37" >>/etc/mongodb-mms/monitoring-agent.config







[root@msdlva-dsnops01 mongod]# sudo systemctl start mongodb-mms-monitoring-agent.service







Once the monitoring agent runs, ops manager is able to discover any mongod running where the monitoring agent host can ping and receive a response


Once the monitoring agent runs, ops manager is able to discover any mongod running where the monitoring agent host can ping and receive a response.
